CAMERA REQUIRED — This viewer uses your device camera to detect the printed marker and overlay the Mauri Compass Mauri Compass assessment in augmented reality. Grant camera permission when prompted. Works best in Chrome (Android) or Safari (iOS). Print the Compass Rose marker from the tab above for best results.

LAUNCH AR VIEWER

Tap to activate camera

Point your camera at the printed Compass Rose marker (or Hiro marker as fallback). The Mauri Compass HUD will appear above the marker showing Te Ao Māori, Te Ao Taiao, and Te Wai Māori scores. Move your device around the marker to view from different angles.

Custom Compass Rose AR Marker — Print & Use

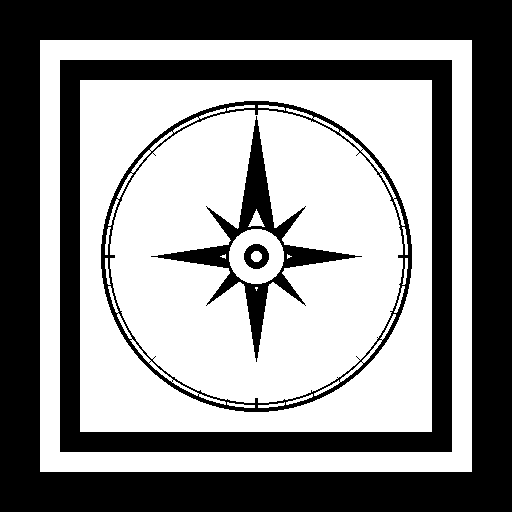

Mauri Compass Rose — Custom AR Pattern

A custom AR.js tracking pattern generated from the Mauri Compass rose. Print at A4 size on matte paper (not glossy — glare reduces detection). The black border is required for AR.js tracking. Keep the marker flat and well-lit for best results.

Pattern Type AR.js Custom (.patt)

Detection Range 15–70 cm

Recommended Print A4 · Matte · Laminated

AR Overlay Mauri Compass HUD

Pattern File compass-rose.patt

DOWNLOAD MARKER (PNG)

Printing Tips

Print at A4 full page — the larger the marker, the greater the detection range. A4 works well at 20–70 cm.

Use matte paper, not glossy. Glare from glossy paper confuses the camera and reduces tracking reliability.

Laminate the printed marker for field use — it protects against moisture and keeps the surface flat.

Ensure the black border is fully visible and not cropped. The border is essential for AR.js to detect the marker orientation.

For display boards or posters, print at A3 for detection at up to 1.5 m distance.

Hiro Marker — Standard AR.js Fallback

Hiro Marker — AR.js Default Pattern

The Hiro marker is the default AR.js tracking pattern. Use this as a fallback if the custom Compass Rose marker is not available. It is widely recognised and highly reliable. Print at A4 on matte paper.

Pattern Type AR.js Preset (hiro)

Detection Range 20–80 cm

Recommended Print A4 · Matte

AR Overlay Mauri Compass HUD

DOWNLOAD HIRO MARKER

How to Use the AR Viewer

Download and print the Compass Rose marker (A4, matte paper). Laminate for field use.

Open this page on your smartphone. Use Chrome on Android or Safari on iOS for best compatibility.

Go to the AR Viewer tab and tap LAUNCH AR VIEWER. Grant camera permission when prompted.

Point your camera at the printed marker. Hold it 20–50 cm from the camera. Ensure the full black border is visible in frame.

The Mauri Compass HUD will appear above the marker — compass rose spinning, domain score bars, and overall score. Move your device to view from different angles.

If tracking is lost, keep the marker flat and well-lit. Avoid shadows across the marker. Reduce ambient glare.

Device Compatibility

✓

Chrome on Android — Full support. Best performance.

✓

Safari on iOS 14+ — Supported. Grant camera permission in Settings if prompted.

✓

Chrome on iOS — Supported on iOS 14.3+.

✗

Firefox on mobile — Not reliably supported with AR.js.

✗

Desktop browsers — Works with a webcam but tracking is less stable without a mobile camera.

Printable A4 Field Card

The A4 field card combines the Compass Rose AR marker with a printed summary of the Ngawhakatutu A2B baseline assessment — site details, assessment scores, and a QR code linking to the full carousel. Designed for lamination and field use at wānanga, site visits, and community hui.

OPEN PRINTABLE FIELD CARD →

Open the Field Card page and use your browser's Print function (Ctrl+P / Cmd+P).

Select A4 paper, landscape orientation. Set margins to None or Minimum.

Print on matte paper and laminate for field use. The AR marker on the left half is fully functional.

Scan the QR code on the right half with any smartphone camera to open the full Mauri Compass carousel.
